Rat Race: ValleyRAT Malware Targets Organizations with New Delivery Techniques

Shmuel Uzan
Shmuel Uzan
03 Feb 2025
10 min read
Morphisec Labs

Morphisec Threat Labs has investigated a series of indicators of attacks leading to a sophisticated, multi-stage malware named ValleyRAT, which is frequently attributed to the Silver Fox APT.

Introduction

This blog explores the broader execution course and updated delivery technique of ValleyRAT. While investigating this threat, we observed that the actor has updated their tactics, techniques, and procedures (TTPs) this year. Interestingly, the actor reused the same URL for both the older and newer versions of their attack.

Based on our previous research into this threat actor’s operations, the group employs multiple distribution channels to spread Remote Access Trojans (RATs). These include phishing emails, malicious websites, and instant messaging platforms. This actor has increasingly targeted key roles within organizations—particularly in finance, accounting, and sales departments—highlighting a strategic focus on high-value positions with access to sensitive data and systems.

In previous attacks, observed in late 2024, the attacker relied on .bat and .ps1 scripts in their attack chain (for more details, refer to  GhostRAT Plays Effective Hide and Seek blog post), where the installer files were named to mimic popular software, such as: 7ZSfxMod_x86.exe, line_setups_vvindow_64.12.10.32.exe, GPTChromX64.exe, IconWorkshop.exe.

For payload injection, the attacker abused legitimate signed executables that were vulnerable to DLL search order hijacking. Examples include: ShellExperienceHosts.exe, kwpswnsserver.exe (WPS Office), Firefox Setup 132.0.2.exe, Update.exe (by Tencent). In its latest attack, the actor created a domain and website designed to impersonate a Chinese telecom company named ‘Karlos’. The payload was named ‘短信国际通道’ (translates to ‘SMS International Channel’).

For payload injection, the attacker again used DLL hijacking, but this time they targeted binaries sourced from Steam (binaries compiled by different game publishers). Interestingly, these binaries were related to the games Left 4 Dead 2 and Killing Floor 2.

ValleyRAT Infection Chain

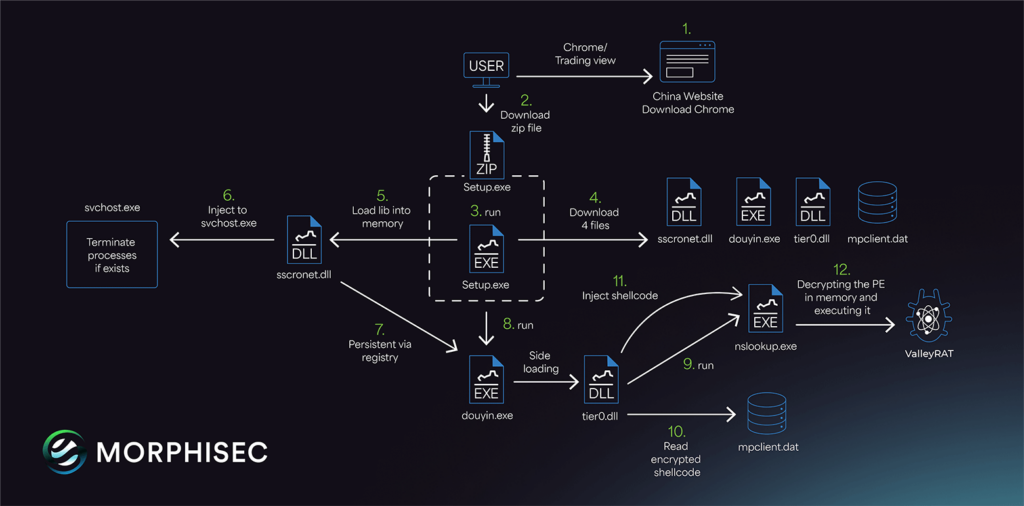

ValleyRAT Malware Diagram

The infection chain kick-starts when the user downloads a fake Chrome browser from https://anizom[.]com/. See below the website and translated text.

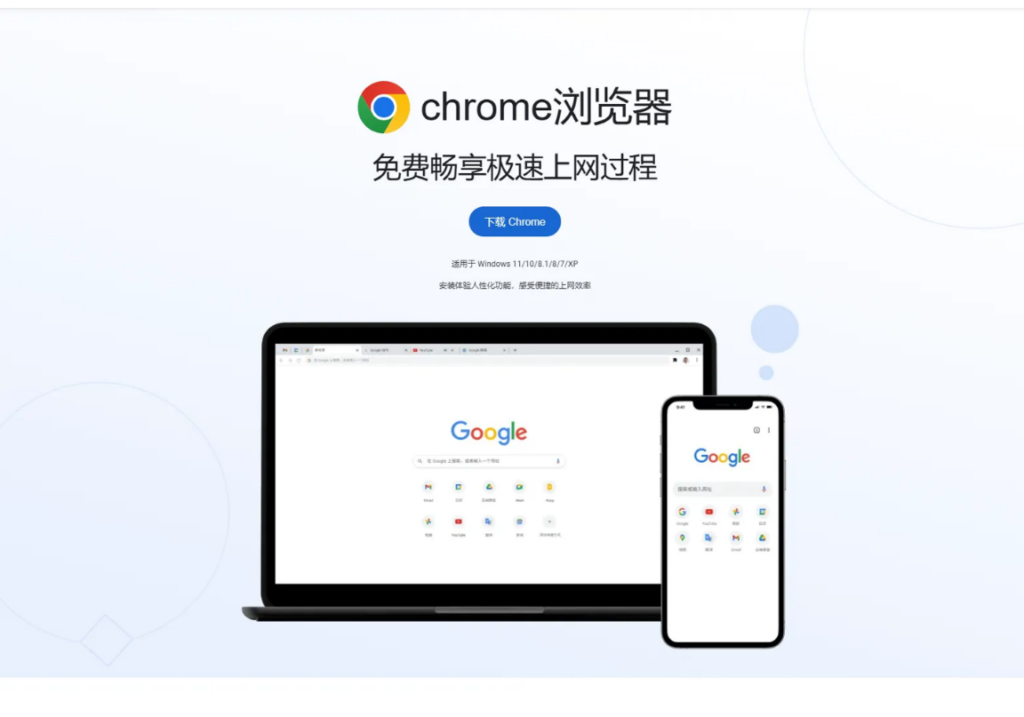

ValleyRAT Fake Chrome Browser (Chinese)

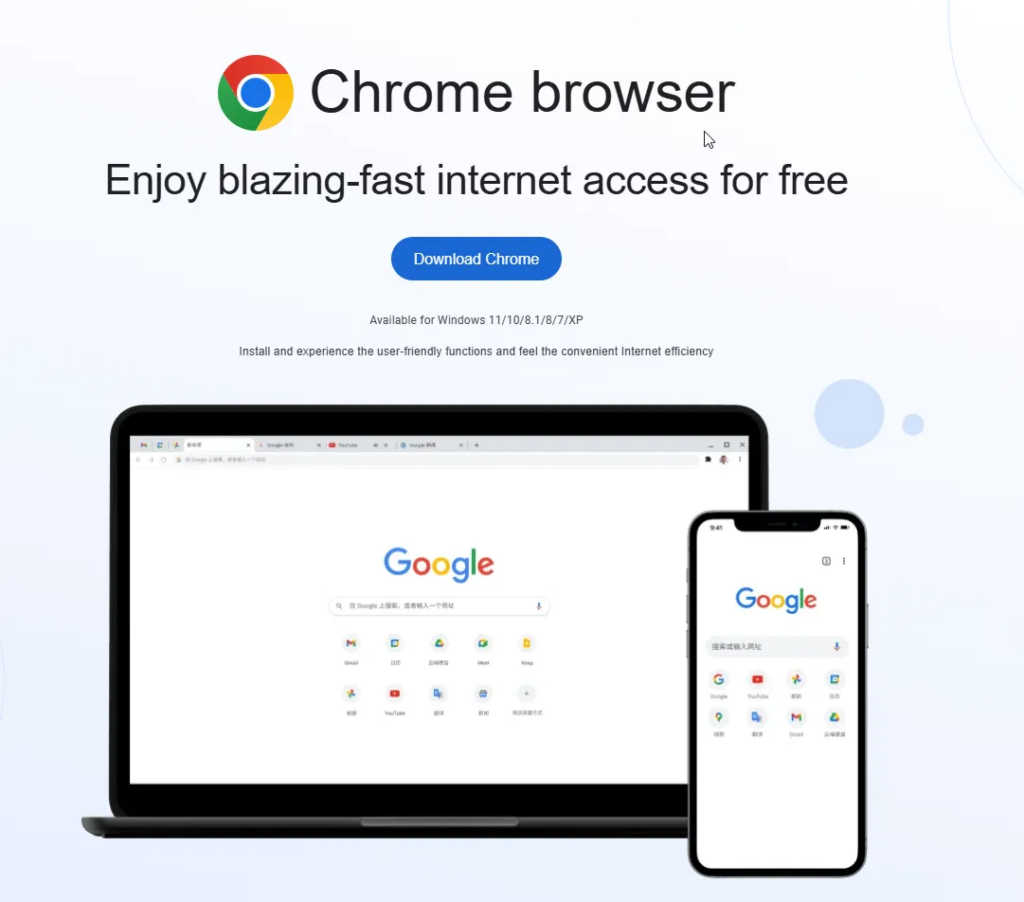

ValleyRAT Malware Fake Chrome Browser (English)

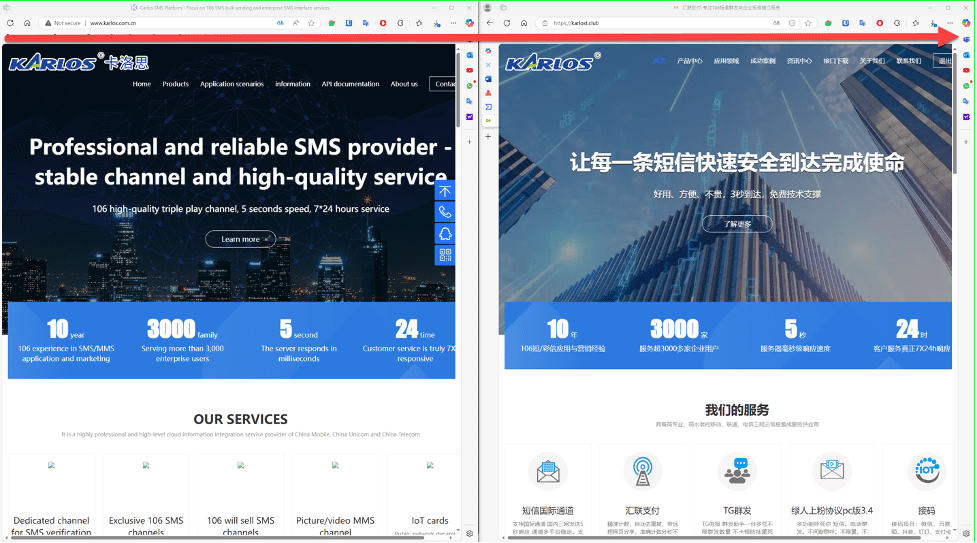

The attackers have used an additional phishing website, faking a legitimate Chinese SMS provider, by the URL https://karlost[.]club/. The image on the right shows the legitimate website www.karlos[.]com.cn – the left shows the phishing site https://karlost[.]club/.

Karlos Site, Real & Phishing Comparison

Next the user downloads the Setup.zip which contains the file Setup.exe, from the phishing website and executes it.

ValleyRAT Payload Downloader

The setup.exe file (original name fotuy.exe), written in .NET, on execution validates if it has  administrator privileges. If not, it proceeds to request the necessary permissions with `runas`.

Next, it checks the operating system type to download additional files, and then it proceeds to download four files:

  • sscronet.dll
  • douyin.exe
  • mpclient.dat
  • tier0.dll

These files are saved in the directory: C:\\Program Files (x86)\\Common Files\\System\\.

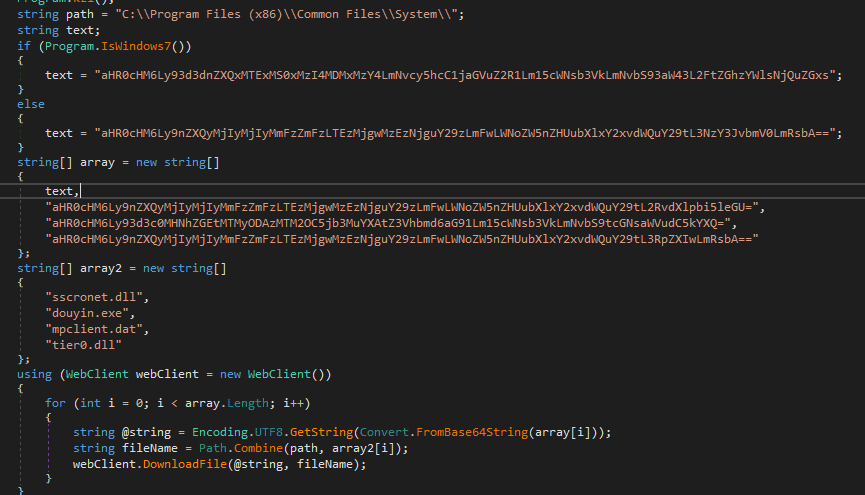

Payload Downloader Code Snippet

Afterward, the setup loads the sscronet.dll file into memory using LoadLibrary. Once the DLL is loaded, it calls two export functions: Cronet_UrlRequest_Start and Cronet_UrlRequest_Read. Eventually, it executes douyin.exe.

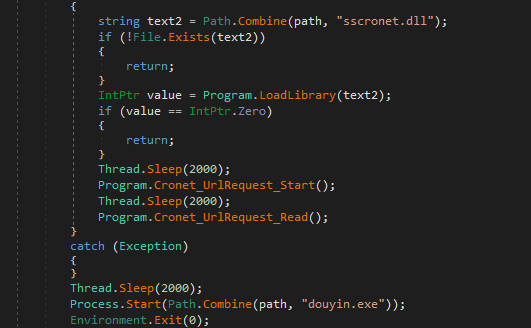

Cronet Export Functions

Sscronet.dll

sscronet.dll appears to be deliberately named with a legitimate-sounding identifier to avoid suspicion. Additionally, while the DLL exports many functions—most of which are either empty or unused—only two are actively utilized: Cronet_UrlRequest_Start and Cronet_UrlRequest_Read.

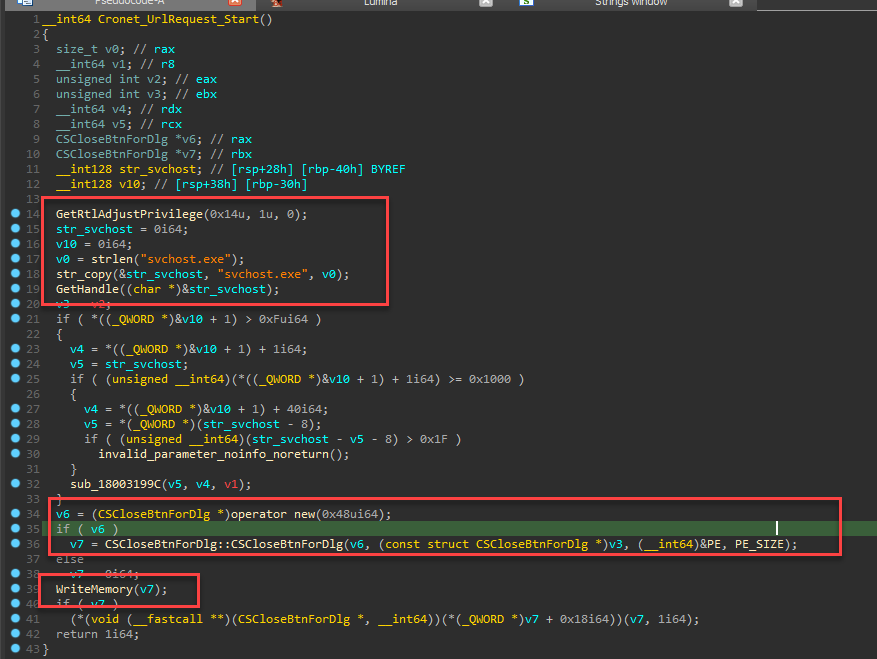

  1. The Cronet_UrlRequest_Start export function searches for a process named svchost.exe using CreateToolhelp32Snapshot, Process32FirstW, and Process32NextW. Once the process is located, it allocates memory within it and writes data to the allocated space. Cronet_URLRequest_Start Function

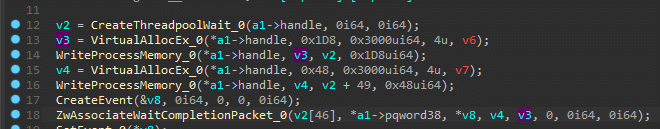

  2. Finally, it executes the DLL file using the CreateThreadpoolWait and ZwAssociateWaitCompletionPacket functions. CreateThreadPoolWait

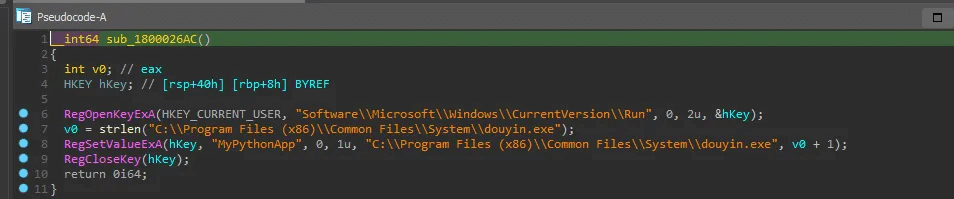

  3. The Cronet_UrlRequest_Read export function is responsible for achieving persistence by adding an entry in the registry at “Software\\Microsoft\\Windows\\CurrentVersion\\Run” under the name MyPythonApp. Cronet_URLRequest_Read

Svchost.exe

We refer to this file as “monitor” due to its behavior. Its purpose is to ensure that none of the excluded processes from a predefined list are running. The setup injects a DLL into SVCHOST.exe, where it functions as a monitoring mechanism. If it detects any process from the exclusion list, it immediately terminates it. This allows the attacker to prevent specific applications from running while their own code remains active.

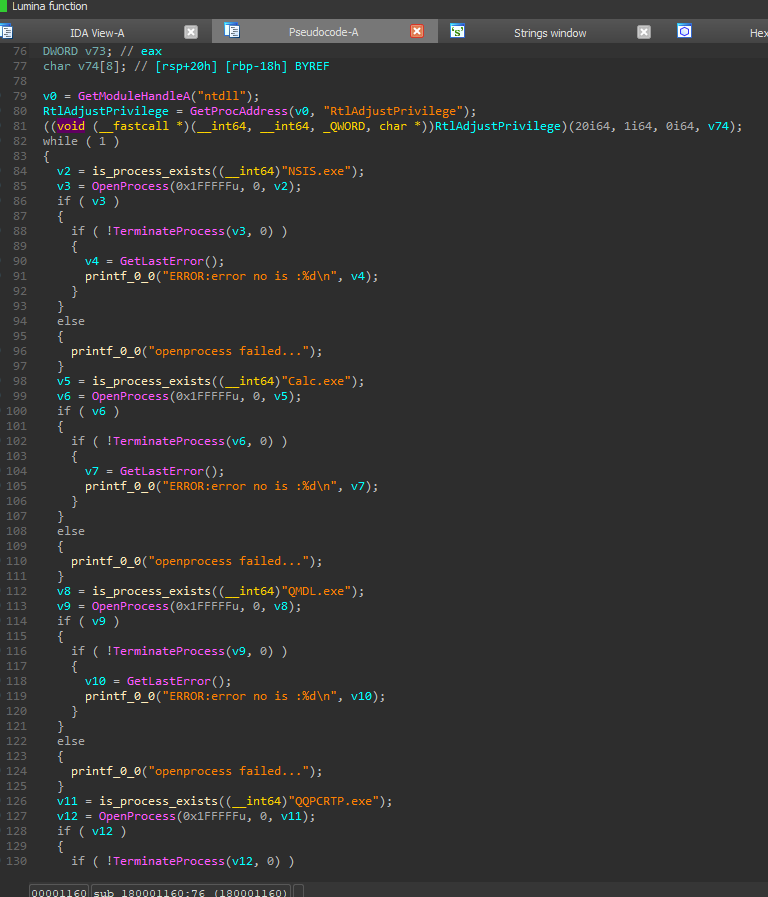

DLL Injection for ValleyRAT

Process List Overview:

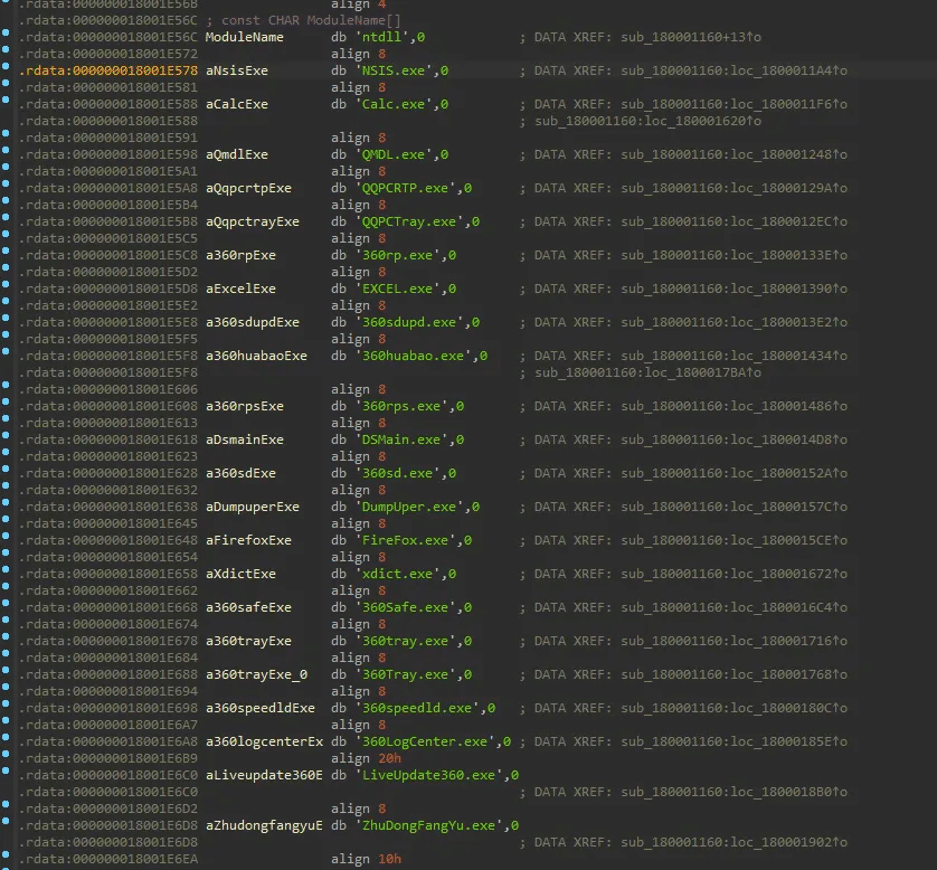

ValleyRAT Process List Overview

Douyin.exe

Douyin.exe is the executable file for Douyin, the Chinese version of TikTok. Attackers can exploit this file by using a DLL side-loading technique. In this method, a malicious DLL is placed in the same folder as Douyin.exe

Tier0.dll

Tier0.dll is a core dynamic link library used in Valve’s Source Engine and related tools. When a thread starts execution, it checks whether the nslookup process is already running on the system. This process can function as a mutex—if nslookup is found running, it is terminated; otherwise, a new instance of nslookup is created.

Typically, attackers create processes in a suspended state for techniques such as APC injection or process hollowing, which can raise suspicion. However, in this case, the attacker used a more creative approach to avoid detection. Instead of employing traditional methods, they selected a predefined process that naturally accepts input and remains idle (sleeps) until user interaction occurs. This tactic helps the attacker execute malicious code while minimizing the chances of being detected.

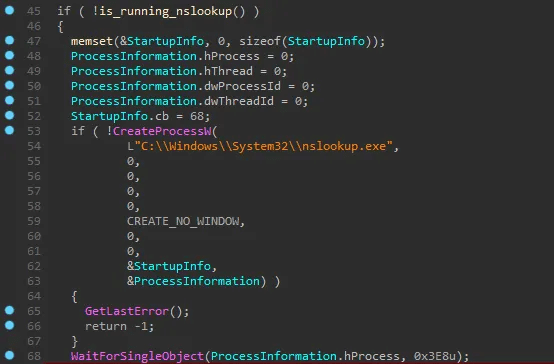

nslookup Check, ValleyRAT Malware

Example of nslookup.exe waiting for Input:

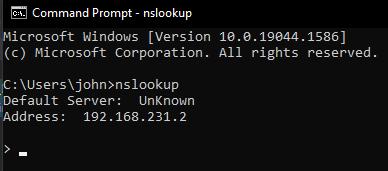

nslookup in Terminal, ValleyRAT Malware

Then, it reads the file located at C:\Program Files (x86)\Common Files\System\mpclient.dat, which contains dount shellcode and an encrypted PE file.

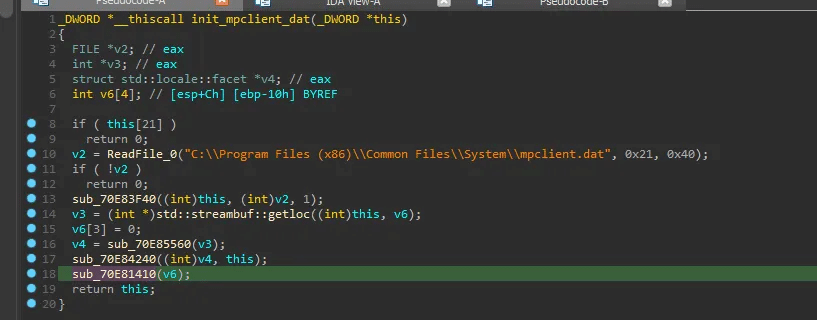

mpclient.dat File Read

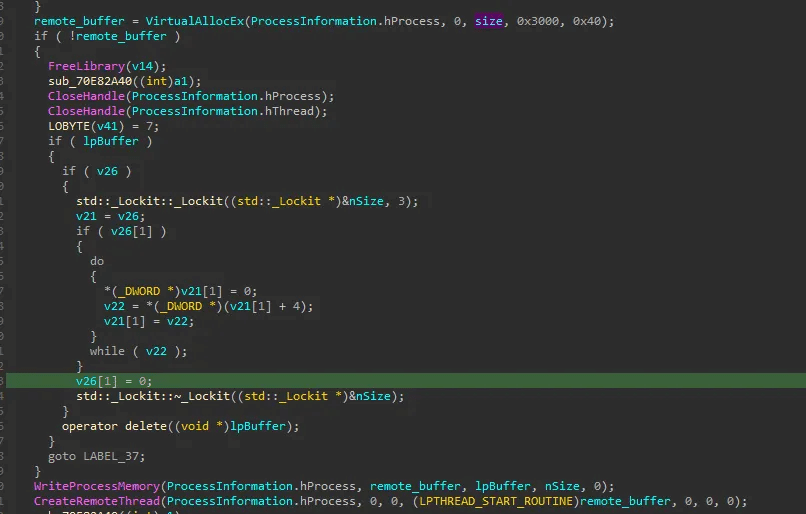

After reading the file, it copies the contents to the memory of nslookup and then spawns a remote process.

ValleyRAT nslookup Remote Process

ValleyRAT as Payload

mpclient.dat file containing Donut shellcode and an encrypted PE file. The shellcode’s role is to decrypt the PE file in memory and execute it, allowing it to run without writing to disk.

Additionally, it hooks the functions AmsiScanString, AmsiScanBuffer, and EtwEventWrite to bypass security mechanisms like AMSI (Antimalware Scan Interface) and ETW (Event Tracing for Windows), helping evade detection.

The ValleyRAT is a RAT written in C++, compiled in Chinese and demonstrates the functionalities of a typically basic RAT.
968b976167b453c15097667b8f4fa9e311b6c7fc5a648293b4abd75d80b15562

Capture Input and Inject Actions

The attacker attempts to access the Windows station winsta0, which handles the screen, keyboard, and mouse. By using OpenWindowStationW and SetProcessWindowStation, the process gains interaction with the user’s desktop SetErrorMode(1u) suppresses error dialogs to avoid detection.

“The interactive window station is the only window station that can display a user interface or receive user input. It is assigned to the logon session of the interactive user, and contains the keyboard, mouse, and display device. It is always named “WinSta0“.”

Open Windows Stations Function in ValleyRAT

Screen Monitoring

The code enumerates all connected monitors using EnumDisplayMonitors and processes their information through the fnEnum callback function. It retrieves details such as screen coordinates and display properties using GetMonitorInfoW and then stores this data in memory for further processing, such as screen capturing or display-related operations.

Monitor Check Function in ValleyRAT

Keylogger

The functionality of the Keylogger is activated when the attacker configures it within a predefined configuration file embedded in the sample. Additionally, the attacker can set a registry key to enable dynamic configuration instead of relying on a fixed configuration.

KeyLogger Code Snippet #1 in ValleyRAT
KeyLogger Code Snippet #2 in ValleyRAT

If everything is set up correctly, the attacker creates a file named ”sys.key” in the ”ProgramData” directory and stores the recorded keystrokes within it.

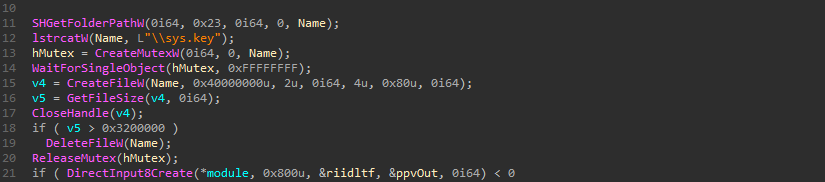

KeyLogger Code Snippet #3 in ValleyRAT

Persistence

The attacker chose to achieve persistence by creating a file named “GFIRestart64.exe” in a way that does not raise suspicion.

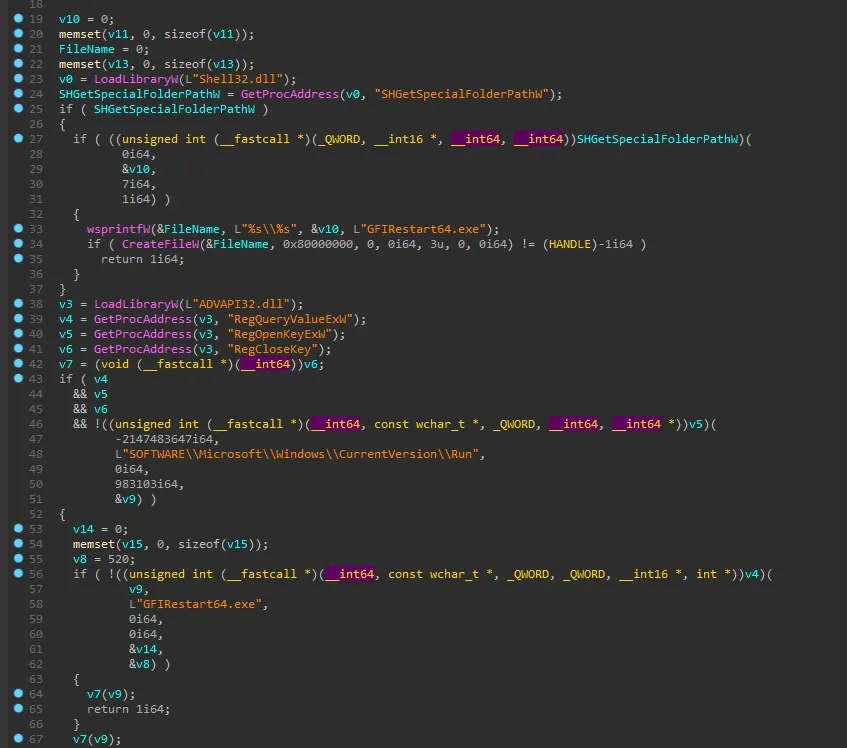

GFIRestart64.exe Code in ValleyRAT

Anti VMware

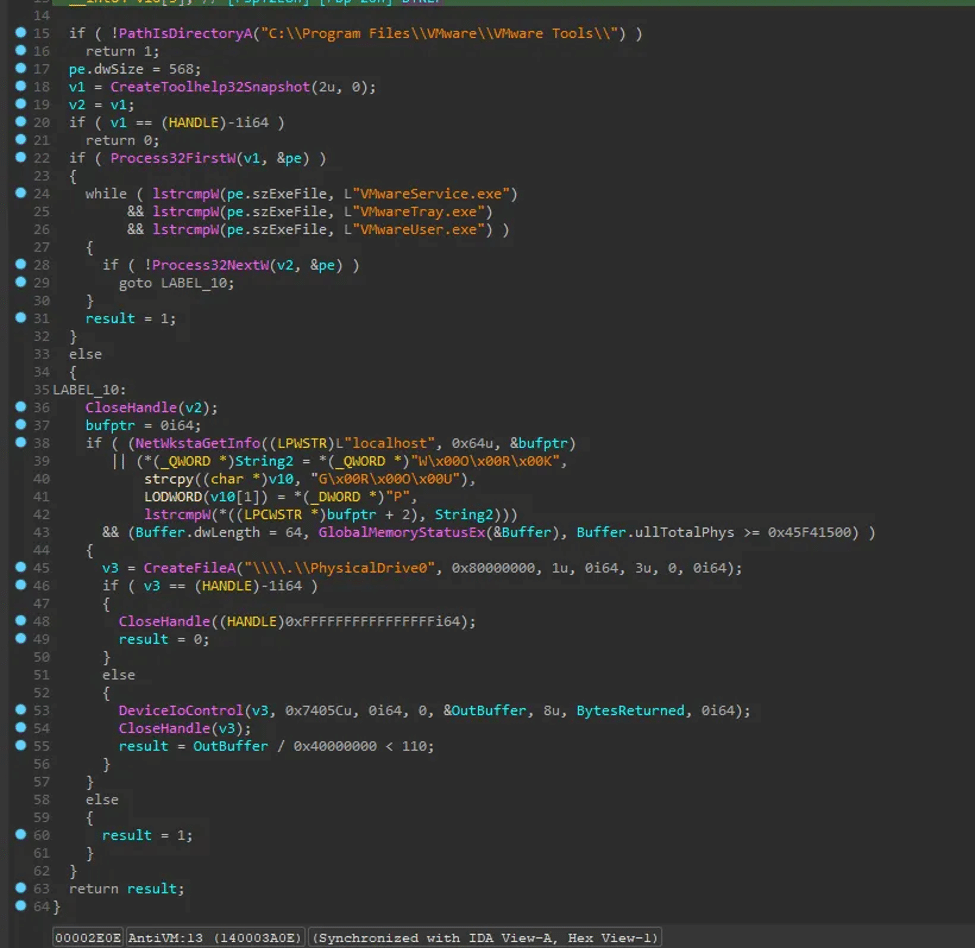

The code checks if it is running inside a VMware virtual machine by looking for the C:\Program Files\VMware\VMware Tools directory and specific VMware processes (VMwareService.exe, VMwareTray.exe, VMwareUser.exe). It also verifies if the system is part of WORKGROUP, checks if the total physical memory is below 1,173,624,064 bytes, and ensures the HDD size is over 110GB. If these checks indicate a VMware environment, the execution may be altered or terminated to evade detection.

Anti-VMware in ValleyRAT

If the malware does not detect that it is running inside a virtual machine (VM), it attempts to establish a connection to www.baidu.com as part of its network communication check.

C2 Communication

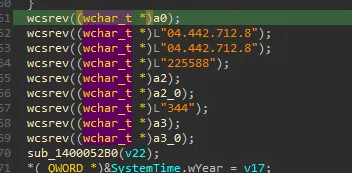

As part of this malware’s installation process, ValleyRAT initializes the C2 IP addresses and port within its code.

ValleyRAT C2 Communication
CommandDescription
0x00Plugin cleanup and get system’s process list. Client replies with a STRUCT_PACKET_PROCESS_LIST structure.
0x01Reply with STRUCT_PACKET_0x02 structure, that contains the exact data originally sent to the Client. This is probably implemented as anti-bot verification or as a PING→PONG packet.
0x02Drops and executes a DLL
0x04Drops and executes a DLL (Second Method)
0x05Plugin cleanup replays with a STRUCT_PACKET_0x05 structure.
0x06Get system’s process list. Client replies with a STRUCT_PACKET_PROCESS_LIST structure.
0x07Drops and executes any type of file (document, image, etc)
0x08Downloads and executes an executable file.
0x09Sets the Client to start at system startup.
0x0ASets the “BEIZHU” (“remark”) or “FENZU” (“subgroup”) registry keys.
0x64Stops the client, without terminating the process.
0x65Starts the client

How Morphisec Helps

Powered by Automated Moving Target Defense (AMTD), Morphisec’s Anti-Ransomware Assurance Suite provides multi-layered and comprehensive preemptive cyber defense against ransomware and advanced cyber-attacks like ValleyRAT malware. Infiltration protection stops attacks at the earliest stage possible, while impact protection safeguards systems, critical assets and files.

Morphisec uses proactive mechanisms to prevent sophisticated attacks, unlike traditional detection-based technologies which rely on signatures or behavioral patterns alone. Morphisec’s AMTD based approach combined with the exposure management modules significantly reduces the attack surface exposure and effectively helps reduce risk exposure. Schedule a demo today to see how Morphisec stops ValleyRAT malware and other sophisticated threats.

hs-cta-img-50832359-01e9-4911-98db-45bd66a69b90

Indicators of Compromise (IOCs)

C2

  • 149.115.250.19
  • 149.115.052.91
  • 8.217.244.40
  • 154.82.85.79
  • 149.115.250.19
  • 118.107.44.219
  • 43.250.172.42
  • 202.146.222.208
  • 103.183.3.10
  • https://anizom[.]com/
  • https://karlost[.]club/

Files downloaded from setup.exe file:

wwwget11111-1328031368[.]cos.ap-chengdu.myqcloud.com/win7/amdhsail64.dllamdhsail64.dll
get22222222asfas-1328031368[.]cos.ap-chengdu.myqcloud.com/sscronet.dllsscronet.dll
get22222222asfas-1328031368[.]cos.ap-chengdu.myqcloud.com/douyin.exedouyin.exe
www40sada-1328031368[.]cos.ap-guangzhou.myqcloud.com/mpclient.datmpclient.dat
get22222222asfas-1328031368[.]cos.ap-chengdu.myqcloud.com/tier0.dlltier0.dll

Hashes:

53A6735CE1ECA68908C0367152A1F8F3CA62B801788CD104F53D037811284D71  Setup.zip
6ED466A2A6EEB83D1FF32BA44180352CF0A9CCC72B47E5BD55C1750157C8DC4CSetup.exe (.Net)
311f2d4ef2598e4a193609c3cd47bf4ff5fb88907026946ecffe6b960d43d5b2TradingView.exe  (.Net)
a87745682da20ddfd6eac7ff2d27fec73ff56c6e9b4438121dcb6ba699c5cb3cmpclient.dat
1db77692eaf4777f69ddf78c52424d81834572f1539ccea263d86a46f28e0ceasscronet.dll
3989f7fa8d1d59ebc6adea90e3958a892b47d94268bf9d5c9c96811f3fb65b00douyin.exe
7c2a1b09617566ff9e94d0b1c15505213589f7fd3b445b334051d9574e52e0f5amdhsail64.dll
bb89e401560ba763d1c5860dd51667ba17768c04d00270bf34abebac47fd040etier0.dll
51a9d06359952f6935619e8cf67042d2cec593788c324b72cffc0d34b1762bb0“Monitor” -> injected dll to svchost
968b976167b453c15097667b8f4fa9e311b6c7fc5a648293b4abd75d 80b15562ValleyRat

References

  1. GhostRAT Plays Effective Hide and Seek
  2. A Deep Dive into a New ValleyRAT Campaign Targeting Chinese Speakers | FortiGuard Labs
  3. Chinese Malware Appears in Earnest Across Cybercrime Threat Landscape | Proofpoint US
